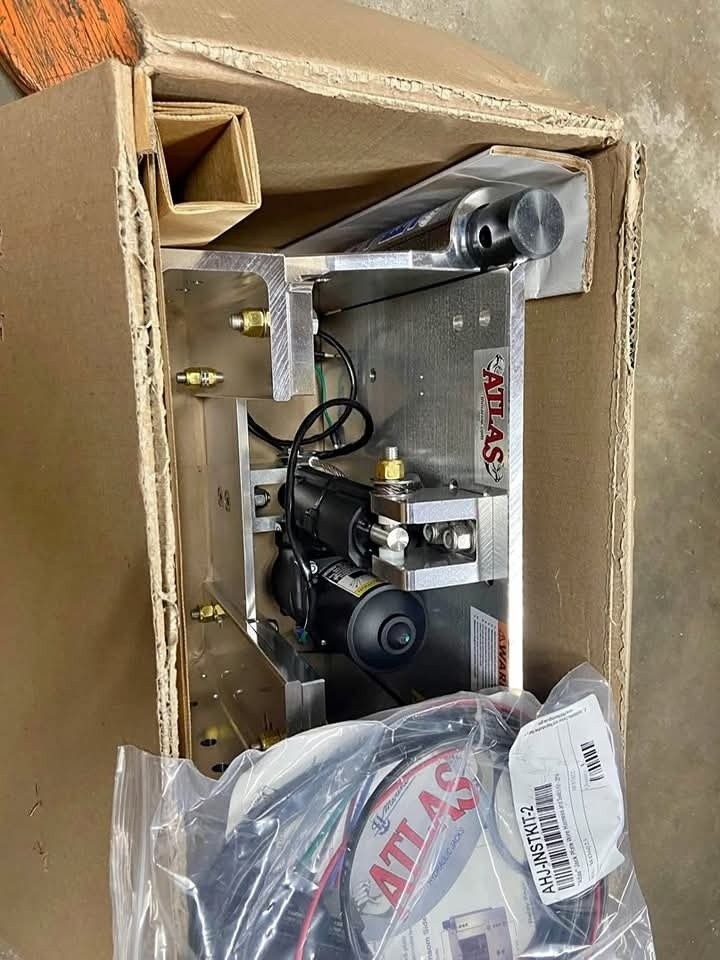

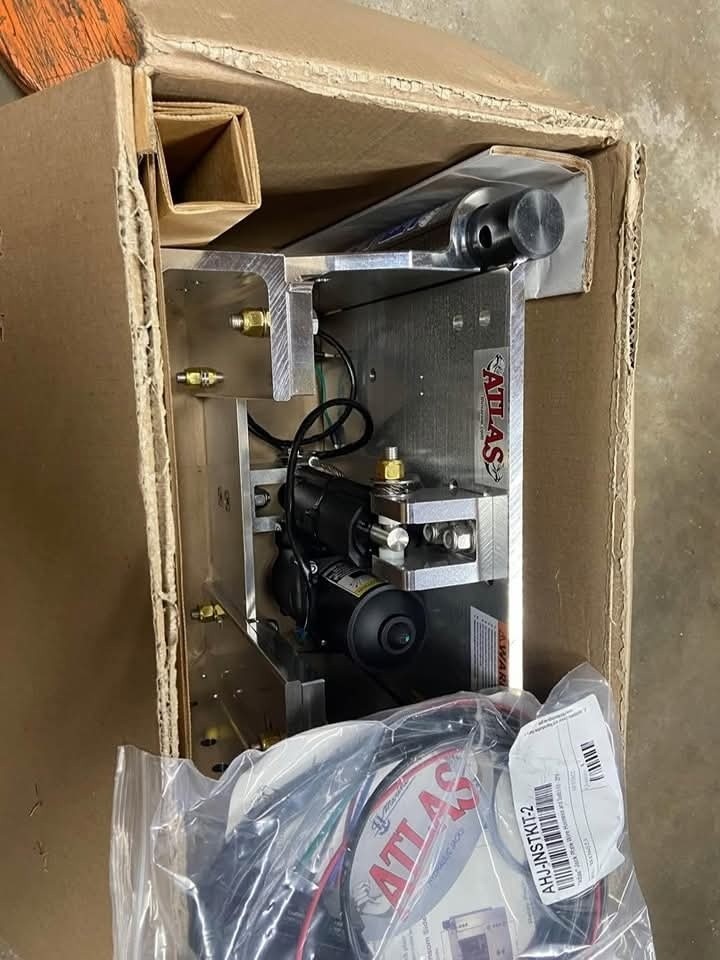

T-H Marine Atlas 10″ Hydraulic Jack Plate (New In Box)

Description

Ultimate Performance Control: T-H Marine Atlas AHJ-10V-DP

The Atlas Hydraulic Jack Plate is the #1 selling plate in the world, trusted by professional tournament anglers and recreational boaters alike. This 10-inch setback model provides the ideal distance to get your outboard into “cleaner” water, reducing drag and increasing top-end speed. Because the pump is self-contained within the plate, there are no hydraulic lines to bleed or reservoirs to mount inside your boat, making for a much cleaner and easier installation.

Ready for Heavy Lifting: This unit is the “Heavy Duty” version, designed to support even the largest V6 and V8 four-stroke outboards. It features a fast-acting actuator that can lift a full-weight engine from bottom to top in seconds, even while under full throttle.

Key Features of the 10″ Atlas Jack Plate:

• Self-Contained Hydraulics: No internal pumps or complicated hoses; the entire lifting mechanism is housed within the plate.

• Bolt-On Installation: Designed to fit standard BIA bolt patterns for a universal fit on most modern outboards.

• Rod-and-Slot Lifting System: Eliminates the need for grease and ensures smooth, bind-free travel even in harsh saltwater environments.

• Integrated Position Sensor: Pre-drilled for easy installation of a digital gauge (sold separately) to monitor height from the helm.

• 10-Inch Setback: Provides superior bow lift and improved handling by moving the engine weight further back.

Technical Specifications:

• Material: Aircraft-grade 6061-T6 aluminum.

• Lift Height: Provides up to 5 inches of vertical travel.

• Max Horsepower: Rated for 300HP+ V6 and V8 outboards.

• Compatibility: Fits all standard 4-bolt outboard mounting patterns.
